Fiber Optic Cable

/Fiber Optic Cable
Fiber Optic Cable 2020-03-23T12:51:48+00:00

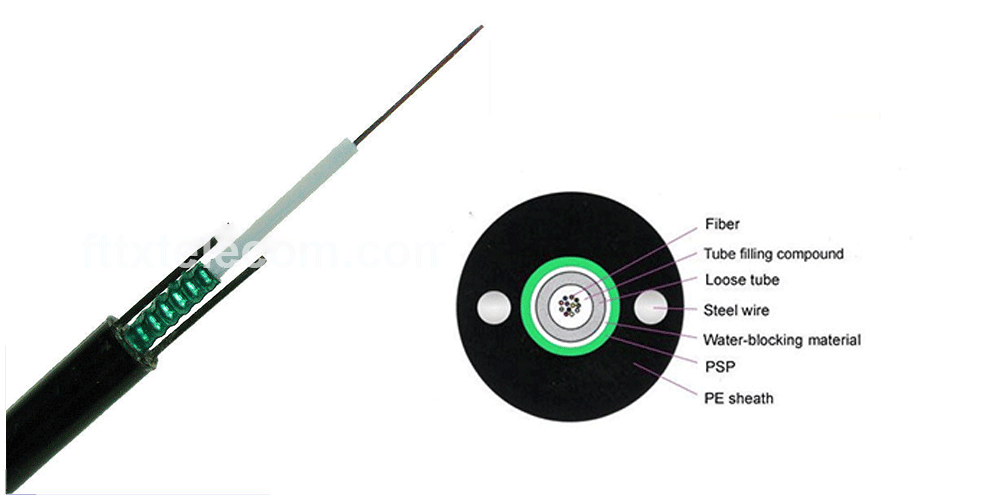

GYXTW Unitube Light-armored Fiber Optic Cable

GYXTW Unitube Light-armored Cable

USD$0.130-0.477/m (price up or down from 2 fiber to 24 fiber)

*Fiber Number: 2 fiber to 24 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 2km/drum
*Max. fiber: up to 24fiber
*Tensile Strength: Short Time 1500N, Long Time 600N
*Crush Resistance: Short Time 3000N, Long Time 1000N
*Installation: duct / aerial

GYFTY53 Stranded Loose Tube Non-metallic Strength Member Armored Cable

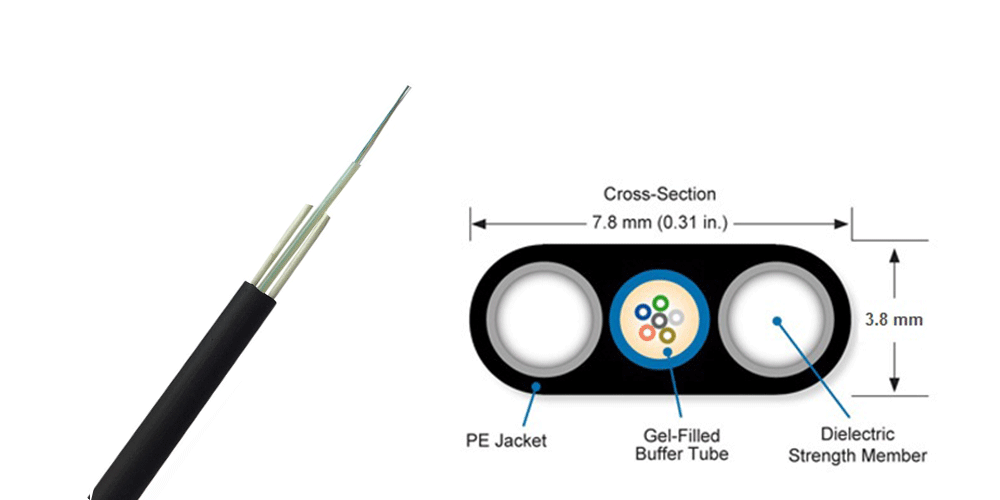

GYFXTBY Flat Fiber Optic Cable

USD$0.149-0.466/m (price up or down from 2 fiber to 24 fiber)

*Fiber Number: 2 fiber to 24 fiber
*Fiber Type: single mode, G652D/ G657A
*Sheath: black PE
*Package: 2km/drum
*Max.fiber: up to 24 fiber
*Tensile Strength: Short Time 1000N, Long Time 50N
*Crush Resistance: Short Time  1000N, Long Time 50N
*Installation: outdoor aerial
*Cable Span(the distance between two pole:60-70m

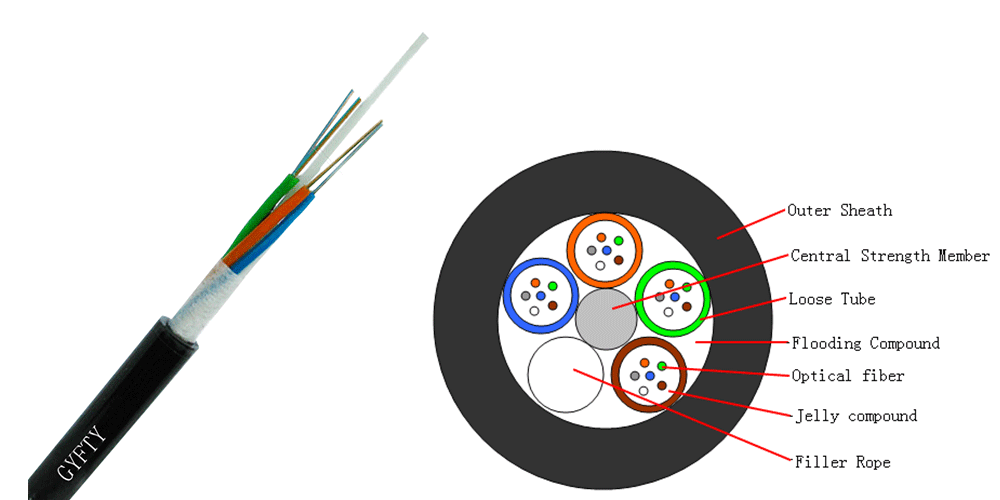

GYFTY Stranded Loose Tube Non-metallic Strength Member Non-armored Cable

GYFTY Stranded Loose Tube Non-metallic Strength Member Non-armored Cable

USD$0.090-1.900/m (price up or down from 4 fiber to 144 fiber)

*Fiber Number: 4 fiber to 144 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 2km/drum
*Max. fiber: up to 144fiber
*Tensile Strength: Short Time ≥1500N, Long Time≥ 600N
*Crush Resistance: Short Time≥ 1000N, Long Time≥ 300N
*Installation: duct/aerial

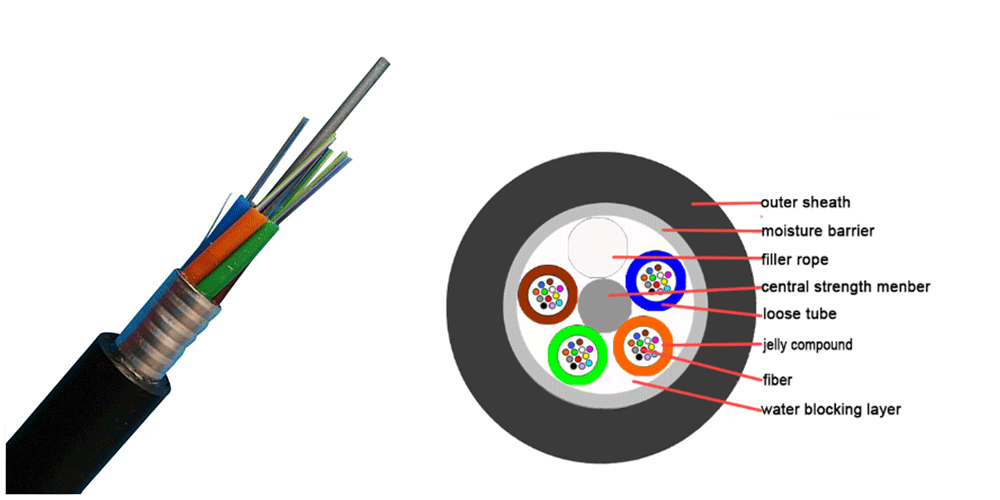

GYTA Stranded Loose Tube Cable

GYTA Stranded Loose Tube Cable

USD$0.160-2.300/m (price up or down from 2 fiber to 144 fiber)

*Fiber Number: 2 fiber to 144 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 2km/drum
*Max. fiber: up to 144fiber
*Tensile Strength: Short Time ≥1500N, Long Time≥ 600N
*Crush Resistance: Short Time≥ 3000N, Long Time≥ 1000N
*Installation: duct / aerial

GYFTA53 Stranded Loose Tube Armored Direct Buried Cable

GYFTA53 Stranded Loose Tube Armored Direct Buried Cable

USD$0.328-5.300/m (price up or down from 6 fiber to 288 fiber)

*Fiber Number: 6 fiber to 288 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 4km/drum
*Max. fiber: up to 288fiber
*Tensile Strength: Short Time ≥3000N, Long Time≥ 1000N
*Crush Resistance: Short Time≥ 3000N, Long Time≥ 1000N
*Installation: direct buried

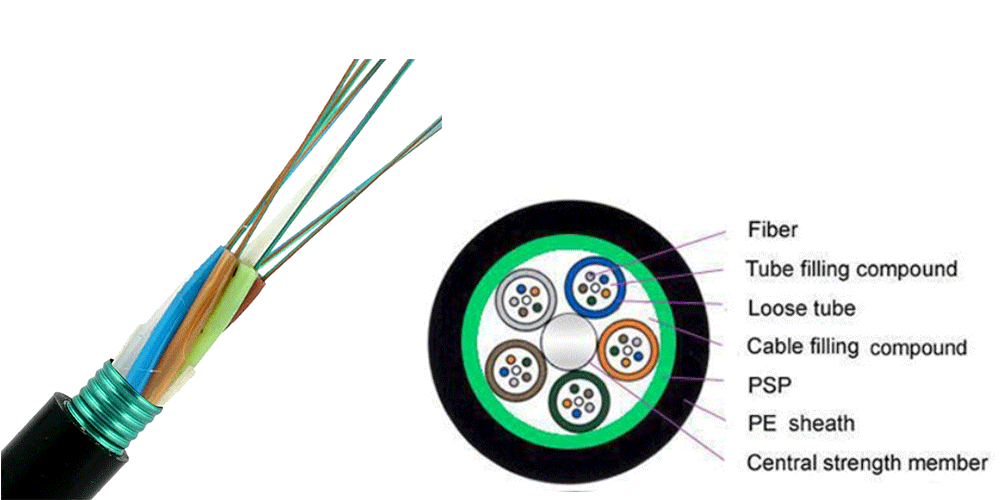

GYFS Stranded Loose Tube Cable

GYFS Stranded Loose Tube Cable

USD$0.187-2.900/m (price up or down from 4 fiber to 144 fiber)

*Fiber Number: 4 fiber to 288 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 4km/drum
*Max. fiber: up to 288fiber
*Tensile Strength: Short Time ≥1500N, Long Time≥ 600N
*Crush Resistance: Short Time≥ 1000N, Long Time≥ 300N
*Installation: duct

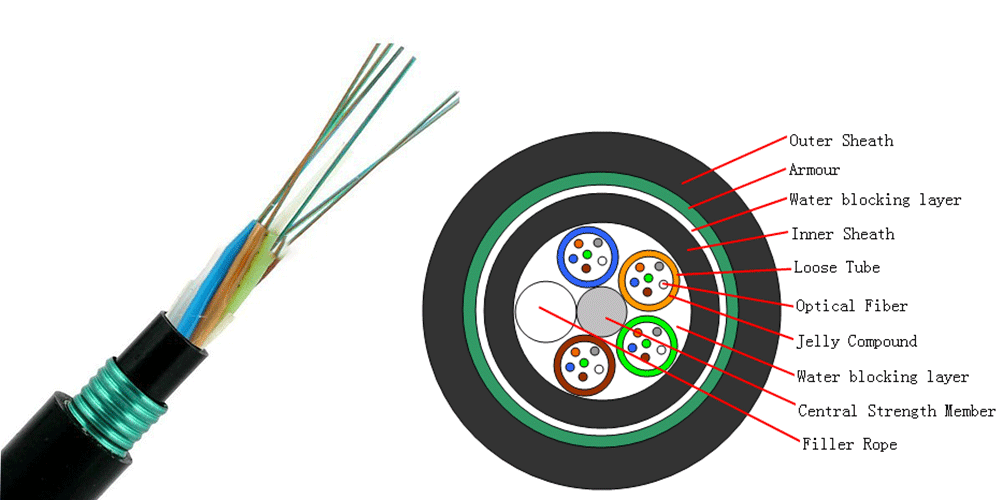

GYFTY53 Stranded Loose Tube Non-metallic Strength Member Armored Cable

GYFTY53 Stranded Loose Tube Non-metallic Strength Member Armored Cable

USD$0.190-3.300/m (price up or down from 4 fiber to 288 fiber)

*Fiber Number: 4 fiber to 288 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 2km/drum
*Max. fiber: up to 144fiber
*Tensile Strength: Short Time ≥3000N, Long Time≥ 1000N
*Crush Resistance: Short Time≥ 3000N, Long Time≥ 1000N
*Installation: direct buried

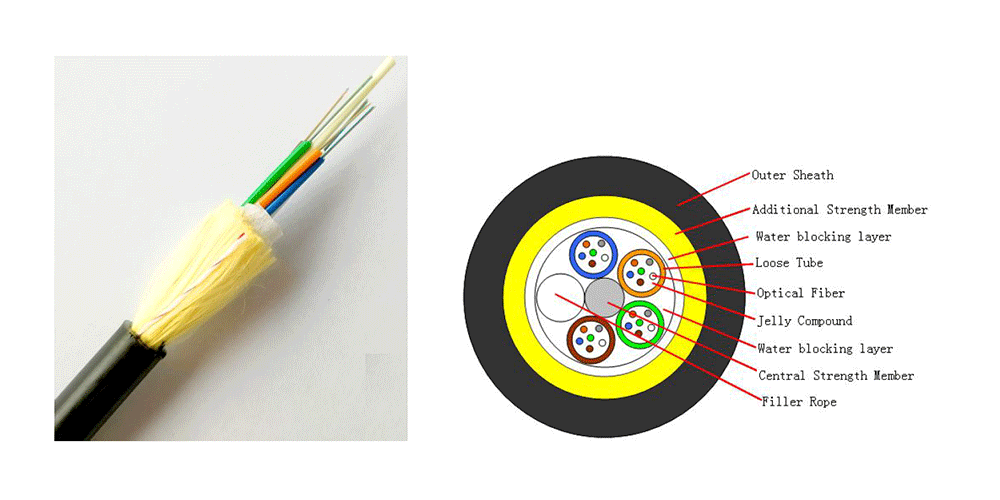

ADSS   All Dielectric Self-supporing Aerial Cable (Single Jacket)

ADSS   All Dielectric Self-supporing Aerial Cable (Single Jacket)

USD$0.388-1.670/m (price up or down from 6 fiber to 96 fiber)

*Fiber Number: 6 fiber to 96 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 2km/drum
*Max. fiber: up to 144fiber
*Cable Span≤200m
*Crush Resistance: Short Time≥ 2200N, Long Time≥ 1100N
*Installation: aerial

*Fiber optic cable price is as reference, may changed expensive or cheaper caused by  dollar exchange rate and other cost.

*Price is based on 40HQ order, you can choose different type to mix in one container.

*MOQ:2km.

*If your order is different from 40HQ, please contact us to get best price.

*More technical datasheet, please contact us.
