Figure 8 Fiber Optic Cable

/Figure 8 Fiber Optic Cable
Figure 8 Fiber Optic Cable 2020-03-23T16:25:00+00:00

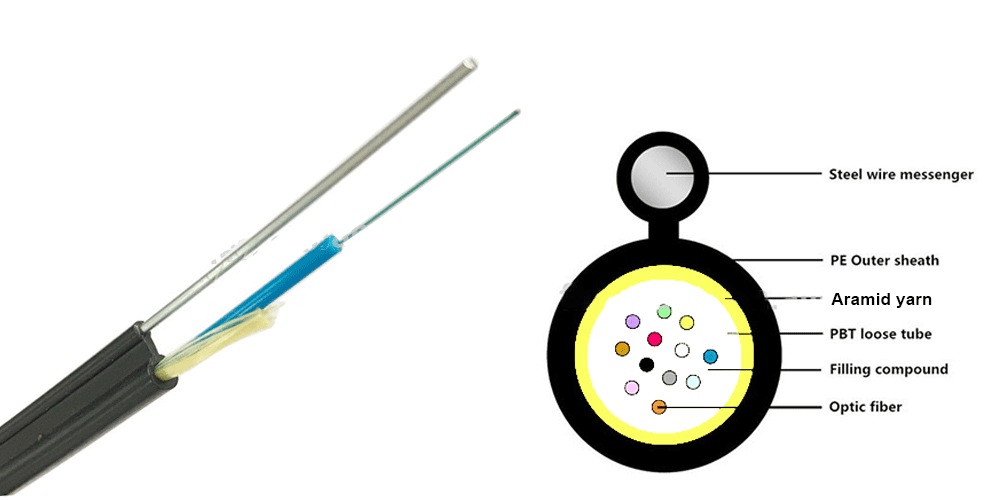

Single Steel Wire Supporting, Non Steel Taped, with Aramid Yarn, Central PBT tube Fiber Optic Cable

Single Steel Wire Supporting, Non Steel Taped, with Aramid Yarn, Central PBT tube Fiber Optic Cable

USD$0.0570-0.179/m (price up or down from 2 fiber to 12 fiber)

*Fiber Number: 2 fiber to 12 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 2km/drum
*Max. fiber: up to 12 fiber
*Maximum installation charge: 600N
*Full load operation: 1250N
*Compression: 100N/cm
*Cable span:80m
*Installation: aerial

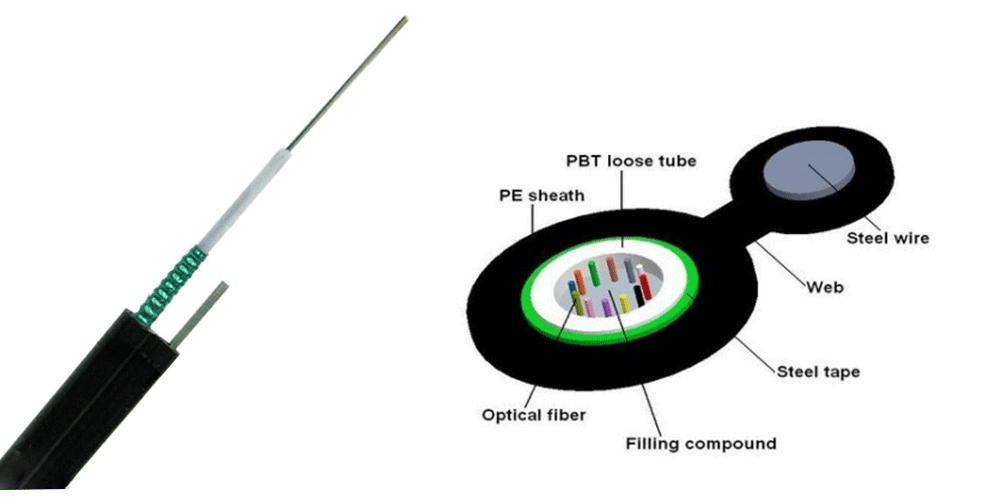

Single Steel Wire Supporting, Steel Taped, Central PBT tube Fiber Optic Cable

Single Steel Wire Supporting, Steel Taped, Central PBT tube Fiber Optic Cable

USD$0.070-0.416/m (price up or down from 2 fiber to 24 fiber)

*Fiber Number: 2 fiber to 24  fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 2km/drum
*Max. fiber: up to 24 fiber
*Maximum installation charge: 100N
*Full load operation: 2000N
*Compression: 500N/cm
*Cable span:80-100m
*Installation: aerial

7 Steel Wires Supporting, Non Steel Taped, Central tube Fiber Optic Cable

7 Steel Wires Supporting, Non Steel Taped, Central tube Fiber Optic Cable (GYXTC8Y)

USD$0.077-0.417/m (price up or down from 2 fiber to 24 fiber)

*Fiber Number: 2 fiber to 24 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 2km/drum
*Max. fiber: up to 24fiber
*Tensile Strength (long/short time): 600N/1500N
*Crush Resistance (long/short time): 600N/1500N
*Installation: aerial

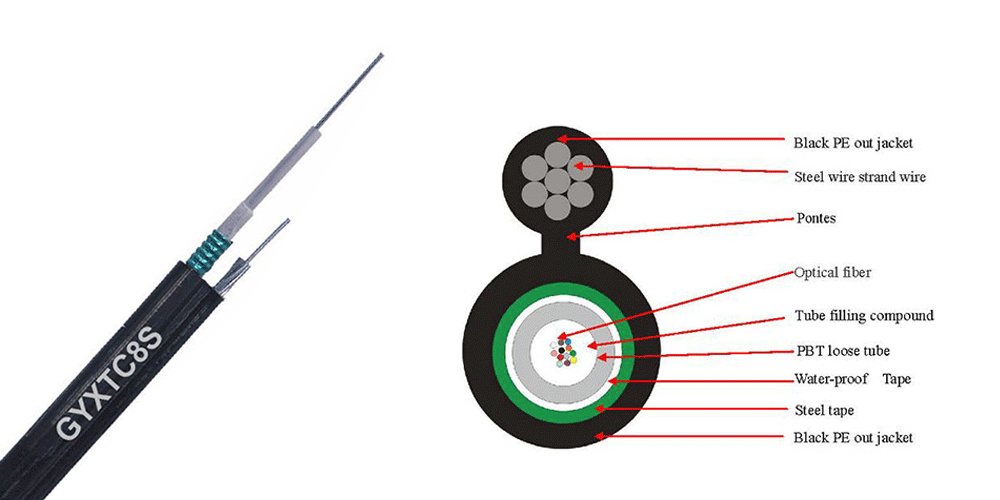

7 Steel Wires Supporting, Steel Taped, Central tube Fiber Optic Cable

7 Steel Wires Supporting, Steel Taped, Central tube Fiber Optic Cable (GYXTC8S)

USD$0.135-0.470/m (price up or down from 2 fiber to 24 fiber)

*Fiber Number: 2 fiber to 24 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 2km/drum
*Max. fiber: up to 24fiber
*Tensile Strength (long/short time): 600N/1500N
*Crush Resistance (long/short time): 600N/1500N
*Installation: aerial

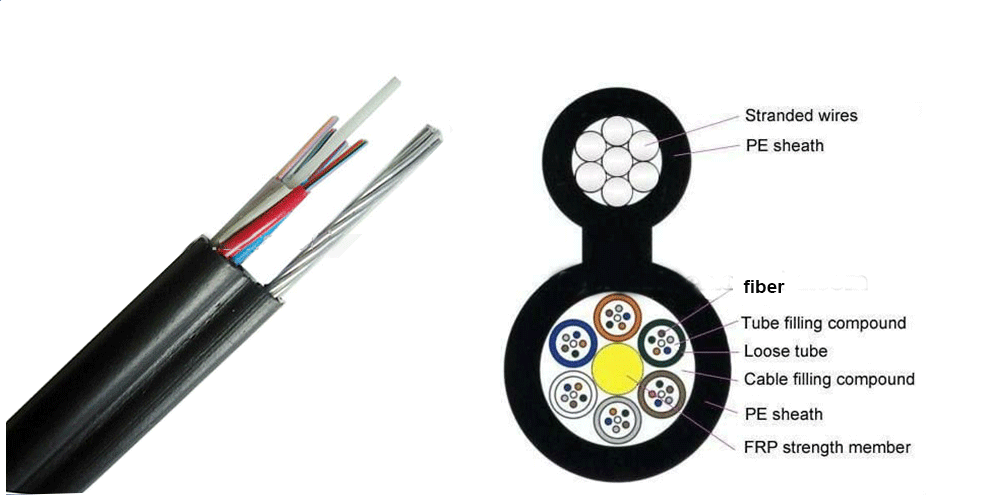

7 Steel Wires Supporting, Non Steel Taped, Muiti tube Fiber Optic Cable

7 Steel Wires Supporting, Non Steel Taped, Muiti tube Fiber Optic Cable (GYFTC8Y)

USD$0.077-1.677/m (price up or down from 2 fiber to 96 fiber)

*Fiber Number: 2 fiber to 96 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 2km/drum
*Max. fiber: up to 96fiber
*Tensile Strength (long/short time): 1000N/3000N
*Crush Resistance (long/short time): 300N/1000N
*Installation: aerial

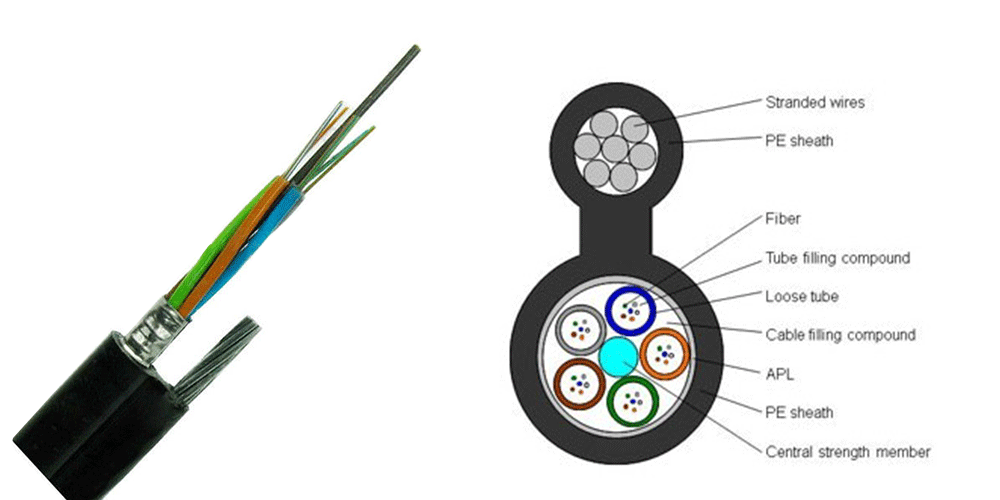

7 Steel Wires Supporting, Aluminum Taped, Muiti tube Fiber Optic Cable

7 Steel Wires Supporting, Aluminum Taped, Muiti tube Fiber Optic Cable( GYTC8A)

USD$0.097-1.977/m (price up or down from 2 fiber to 96 fiber)

*Fiber Number: 2 fiber to 96 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 2km/drum
*Max. fiber: up to 96fiber
*Tensile Strength (long/short time): 2000N/6000N
*Crush Resistance (long/short time): 300N/1000N
*Installation: aerial

7 Steel Wires Supporting, Steel Taped, Muiti tube Fiber Optic Cable

7 Steel Wires Supporting, Steel Taped, Muiti tube Fiber Optic Cable (GYTC8S)

USD$0.120-2.211/m (price up or down from 2 fiber to 96 fiber)

*Fiber Number: 2 fiber to 96 fiber
*Fiber Type: single mode, G652D
*Sheath: black PE
*Package: 2km/drum
*Max. fiber: up to 96fiber
*Tensile Strength (long/short time): 2000N/6000N
*Crush Resistance (long/short time): 300N/1000N
*Installation: aerial

*Fiber optic cable price is as reference, may changed expensive or cheaper caused by  dollar exchange rate and other cost.

*Price is based on 40HQ order, you can choose different type to mix in one container.

*MOQ:2km.

*If your order is different from 40HQ, please contact us to get best price.

*More technical datasheet, please contact us.
