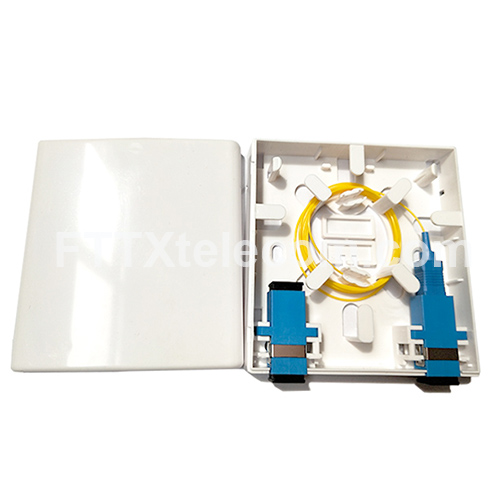

2 port and 4 port fiber optic faceplate box

FT-101A  US$0.23-0.27/PCS

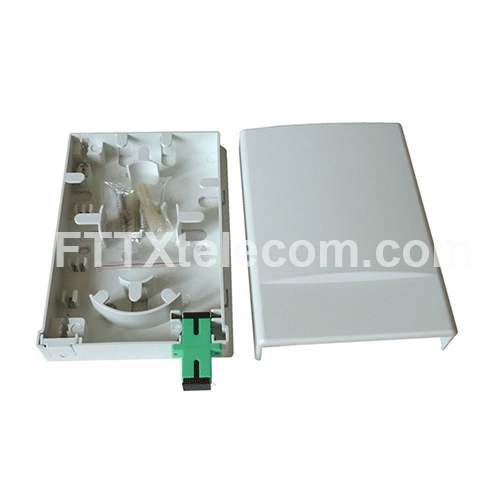

FT-101B  US$0.32-0.37/PCS

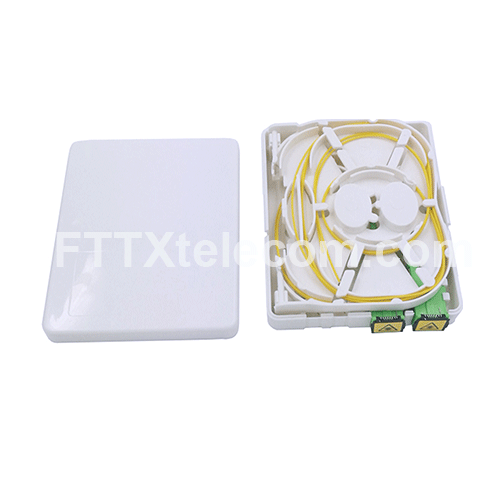

FT-101C  US$0.75-0.87/PCS

FT-101A  US$0.47-0.54/PCS

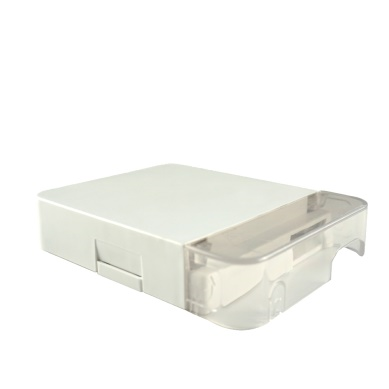

Model FT-101A FT-101B FT-101C FT-101D
Outside Dimension (mm) 86*86*27mm 120*88*25mm 100*80*25mm 116*86*23mm
Weight 47g 100g 90g 85g
Material ABS ABS + PC ABS ABS
Color White White White White
Splice capacity 2 single fiber 2 single fiber 2 single fiber 2 single fiber
Adapter type SC/duplex LC SC/duplex LC SC/duplex LC SC/duplex LC

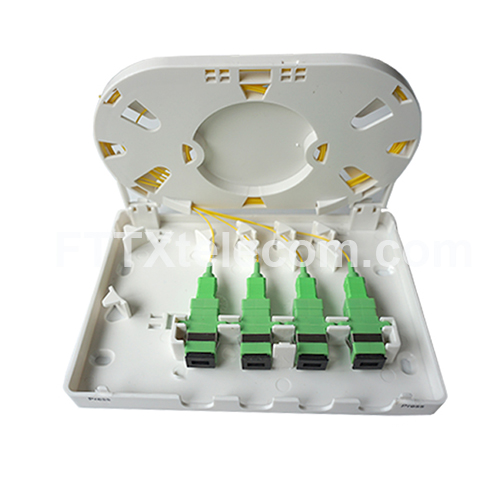

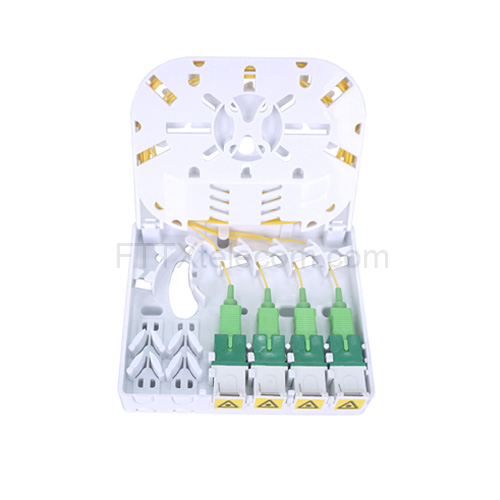

FT-104A  US$1.39-1.42/PCS

FT-104B  US$2.70-3.00/PCS

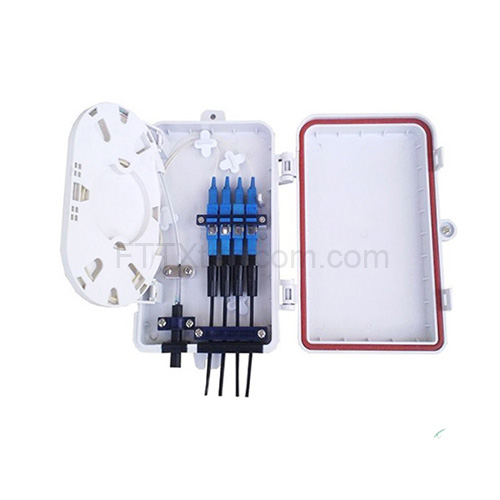

FT-104C  US$0.91-0.94/PCS

FT-208-plate  US$6.30-6.70/PCS

Model FT-104A FT-104B FT-104C FT-208-plate
Outside Dimension (mm) 149*109*29mm 210*140*40mm 100*80*30mm 183*169*19mm
Weight 150g 280g 70g 200g
Material ABS+PC ABS ABS ABS+PC
Color White or Black White White Grey
Splice capacity 4 single fiber 4 single fiber 4 single fiber 2 input and 6 output
Adapter type SC/LC/FC SC/LC SC/LC SC/LC

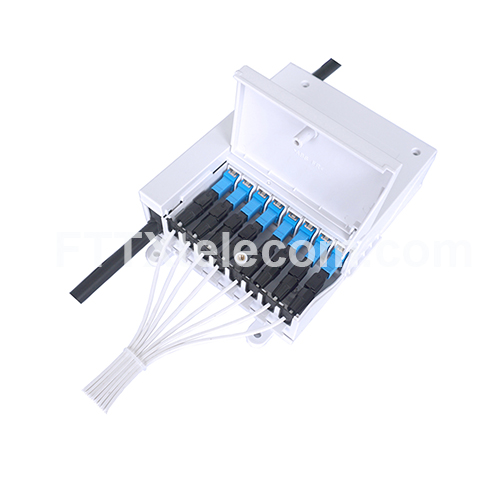

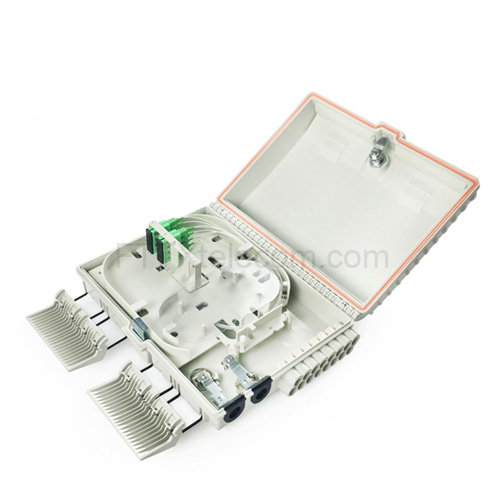

8 port fiber optic distribution box

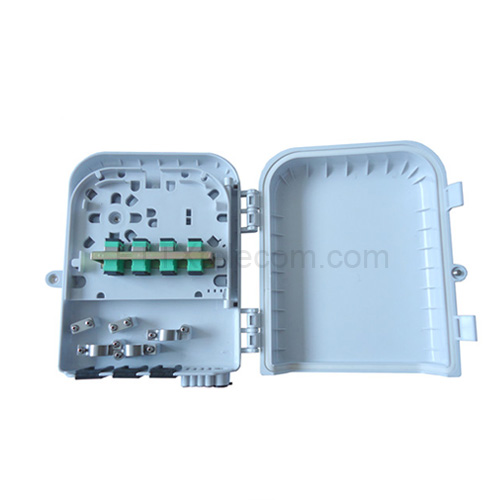

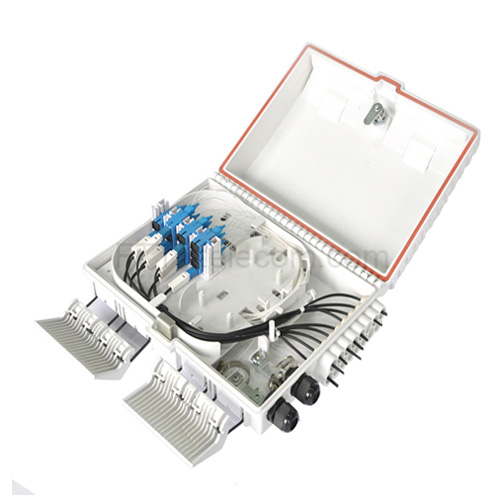

FT-208A  US$6.30-6.70/PCS

FT-208B-white  US$6.40-6.90/PCS

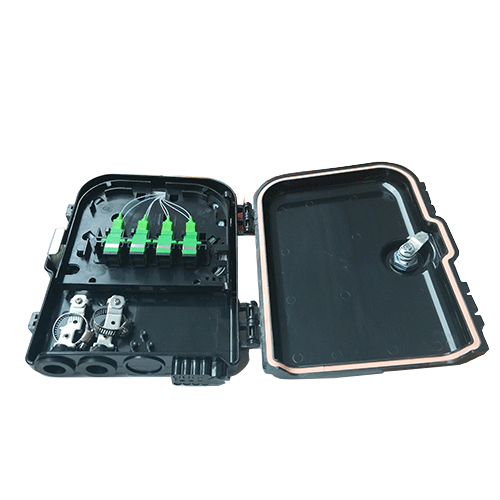

FT-208B-black  US$6.40-6.90/PCS

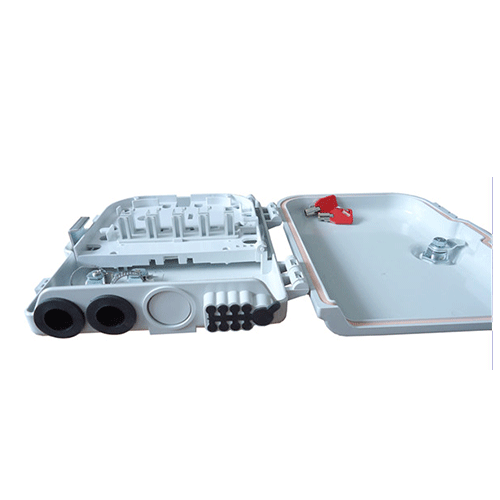

FT-208B-lock  US$6.50-7.00/PCS

Model FT-208A FT-208B
Outside Dimension (mm) 242*195*64mm 242*195*67mm
Weight 700g 800g
Material ABS+PC ABS
Color White White or Black
Cable port 3 cable ports(mix diameter 12mm)+ 8 port cable ports 3 cable ports(mix diameter 12mm)+ 8 port cable ports
Adapter 8 SC adaptors 8 SC adaptors
PLC Splitter 1X4/1X8 Plc splitter 1X4/1X8 Plc splitter

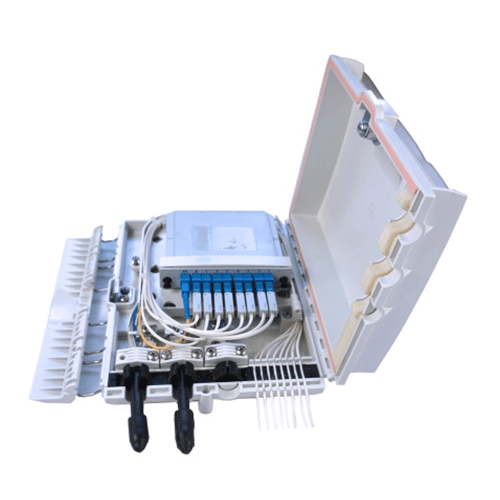

FT-208C-white  US$7.40-7.90/PCS

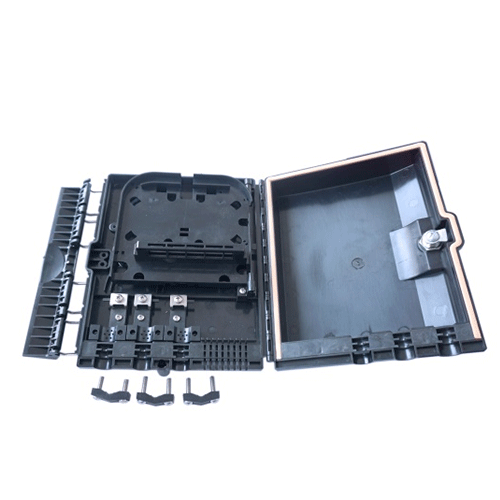

FT-208C-black  US$7.40-7.90/PCS

FT-208-mini  US$6.30-6.70/PCS

Model FT-208C FT-208-mini
Outside Dimension (mm) 252*210*72mm 192*135*48mm
Material PC ABS
Color White or Black White
Cable port 3 input cable and 8 output cable 2 input and8 output
Adapter 8 SC adaptors 8 SC adaptors
PLC Splitter 1:4/1:8 Plc splitter 1:4/1:8 plc min splitter

12 port fiber optic distribution box

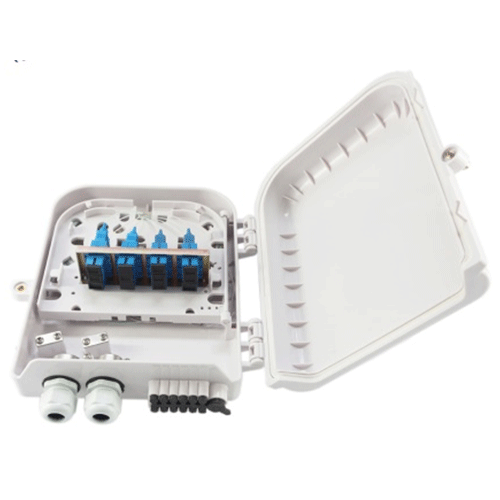

FT-12A   US$7.90-8.20/PCS

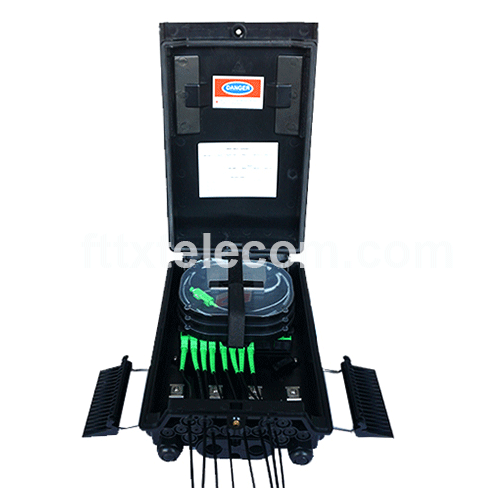

FT-12B-black  US$15.70-17.00/PCS

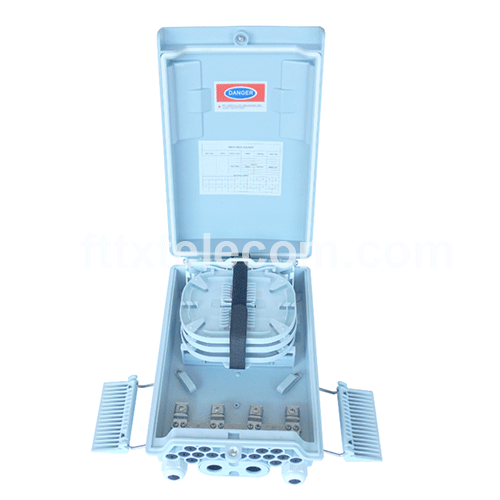

FT-12B-white  US$15.70-17.00/PCS

Model FT-12A FT-12B
Outside Dimension (mm) 200*215*54mm 271*175*82mm
Material ABS ABS
Color White White or Black
Cable port 2 input cable and 12 output cable 2 input and 12 output
Adapter 12 SC adaptors 12 SC adaptors
PLC Splitter 1:4/1:8/ 1:12 Plc splitter 1:4/1:8/ 1:12 Plc splitter

16 port fiber optic distribution box

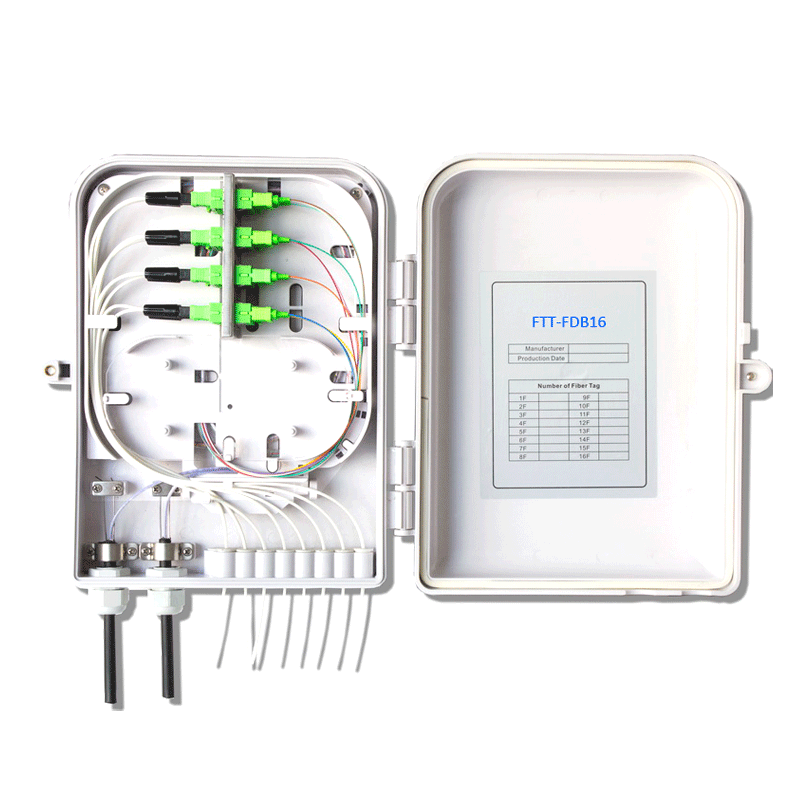

FT-16A   US$10.10-11.90/PCS

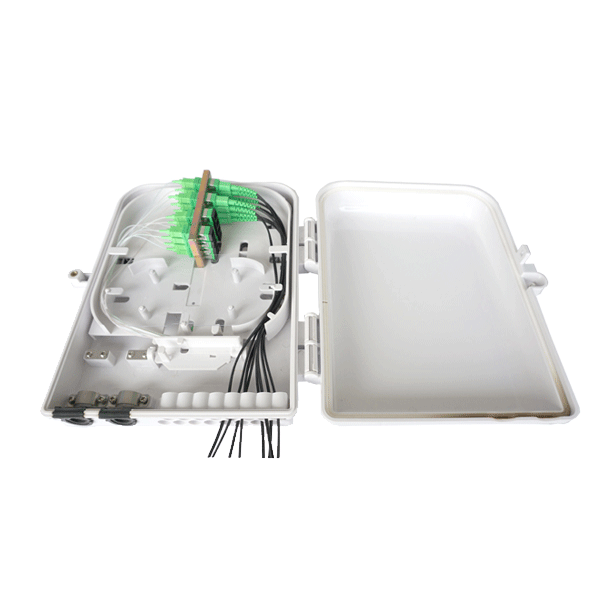

FT-16B   US$9.10-10.90/PCS

FT-16C  US$13.70-14.90/PCS

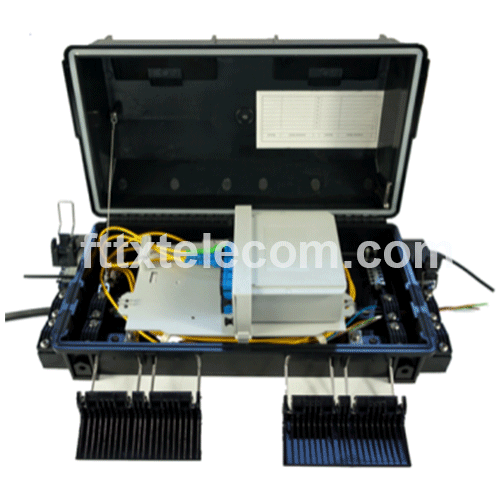

FT-16D-white  US$11.70-12.90/PCS

Model FT-16A FT-16B FT-16C FT-16D
Outside Dimension (mm) 320*260*93mm 320*260*93mm 306*240*110mm 306*240*110mm
Weight 1.17kg 1.17kg 1.68kg 1.68kg
Material ABS+PC ABS+PC PC PC
Color White/Black White/ Black White/Black White/Black
Cable port 2 input cable and 16 output cable 2 input cable and 16 output cable 2 input cable and 16 output cable 2 input cable and 16 output cable
Adapter 16pcs SC / 16pcs DX LC 16pcs SC / 16pcs DX LC 16pcs SC / 16pcs DX LC 16pcs SC / 16pcs DX LC
PLC Splitter 1:4/1:8/ 1:16 Plc splitter 1:4/1:8/ 1:16 Plc splitter 1:4/1:8/ 1:16 Plc splitter 1:4/1:8/ 1:16 Plc splitter

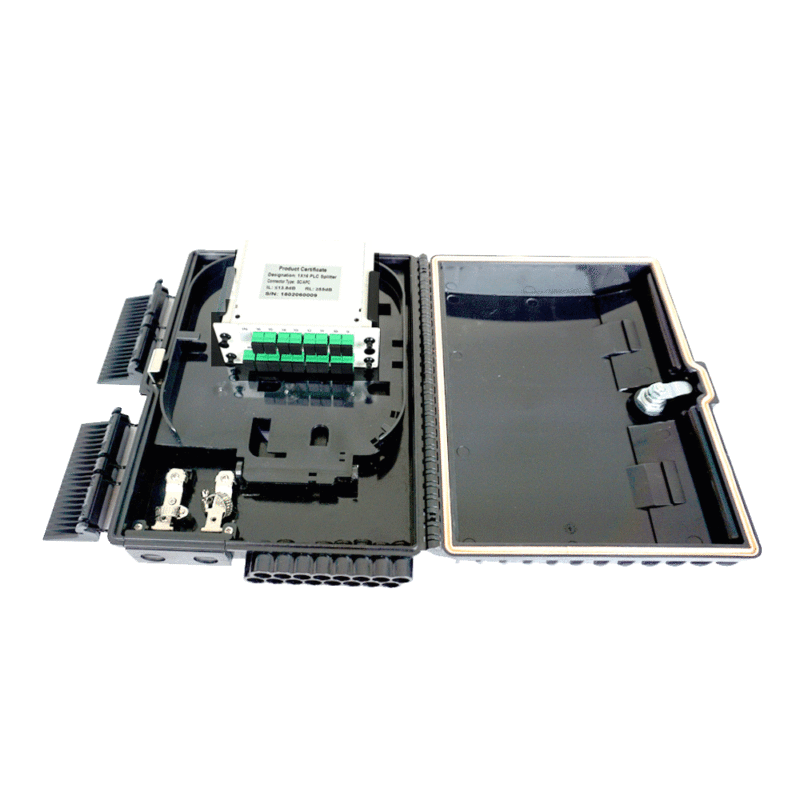

FT-16D-black  US$11.70-12.90/PCS

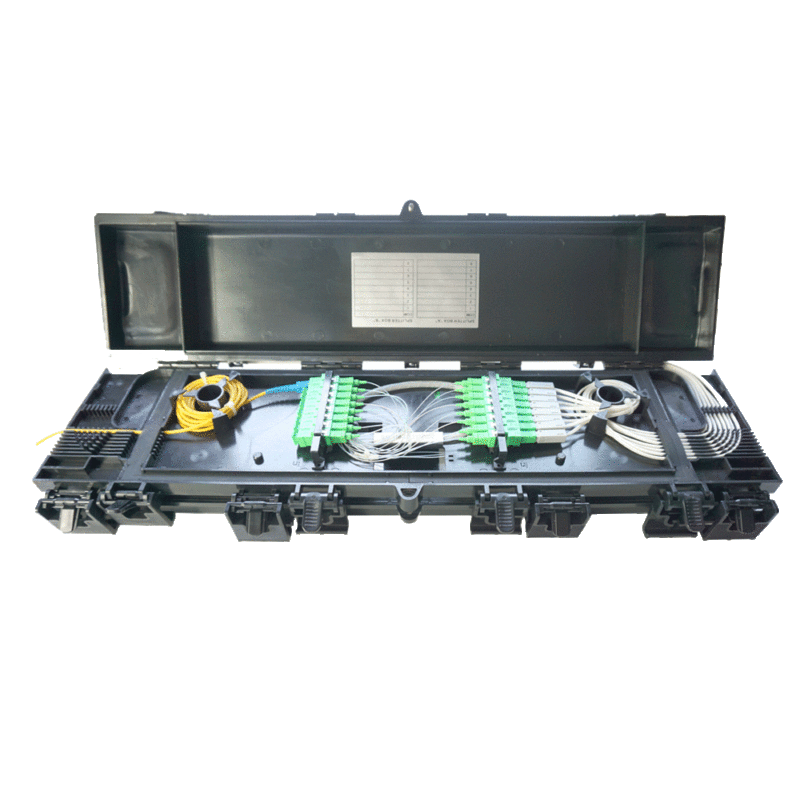

FT-16E   US$17.99-19.99/PCS

FT-16F   US$11.7-13.90/PCS

FT-16G  US$17.70-18.77/PCS

Model FT-16D FT-16E FT-16F FT-16G
Outside Dimension (mm) 306*240*110mm 601*163*88mm 260*213*116mm /
Material PC PC PC+ABS PC
Color White/Black Black White White/Black
Cable port 2 input cable and 16 output cable 4×4 input cable and 8×8 output cable 16 ports for both input and output 2 input cable and 16 output cable
Adapter 16pcs SC / 16pcs DX LC 16pcs SC / 16pcs DX LC 16pcs SC / 16pcs DX LC 16pcs SC / 16pcs DX LC
PLC Splitter 1:4/1:8/ 1:16 Plc splitter 1:4/1:8/ 1:16 Plc splitter 1:4/1:8/ 1:16 Plc splitter 1:4/1:8/ 1:16 Plc splitter

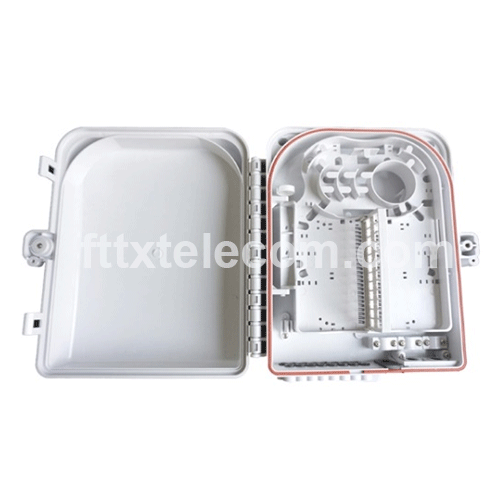

24 port fiber optic distribution box

FT-24A  US$14.10-14.90/PCS

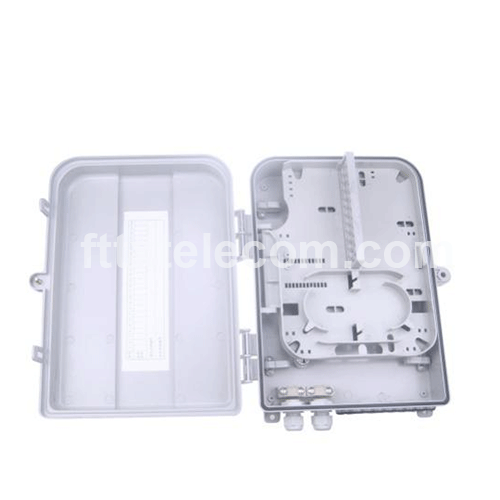

FT-24B   US$17.99-18.90/PCS

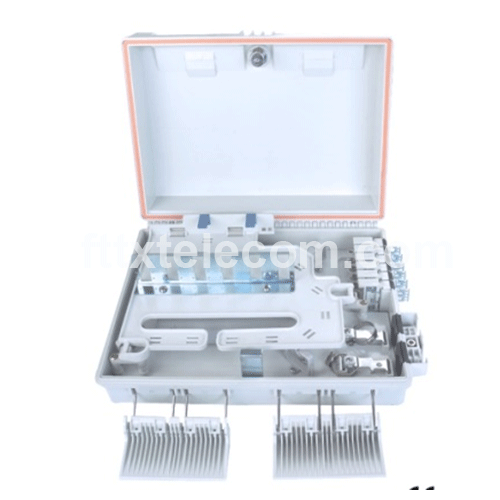

FT-24C   US$19.7-20.00/PCS

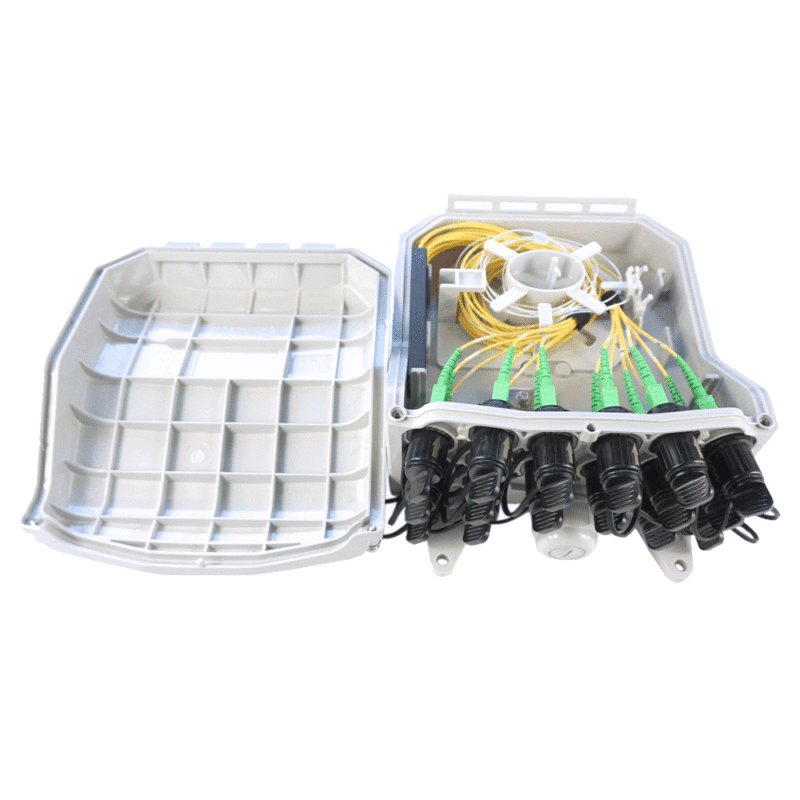

FT-GJS017A   US$34.00-35.80/PCS

Model FT-24A FT-24B FT-24C FT-GJS17A
Outside Dimension (mm) 320*300*113mm 335×295.5×117.2mm 305*225*100mm 314*195*115 mm
Material PC+ABS PC+ABS PC PC
Color White White White Black
Cable port 2 inlet cable and 24 outlet cable 2 inlet cable and 24 outlet cable 2 inlet cable and 24 outlet cable 6inlet and 8outlet
Adapter 24pcs SC / 24pcs DX LC 16pcs SC / 16pcs DX LC 24 pcs SC / 24pcs DX LC Max. 48Fiber
PLC Splitter 1:4/1:8/ 1:16 Plc splitter 1:4/1:8/ 1:16 Plc splitter 1:4/1:8/ 1:16 Plc splitter 1 pce 1*8 Mini PLC
2 pcs1*4 Mini PLC

*Fiber optic distribution box and faceplate price is as reference, may changed expensive or cheaper caused by  dollar exchange rate and other cost.

*Price is based on 40HQ order, you can choose different type to mix in one container.

*MOQ:30PCS.

*If your order is different from 40HQ, please contact us to get best price.
